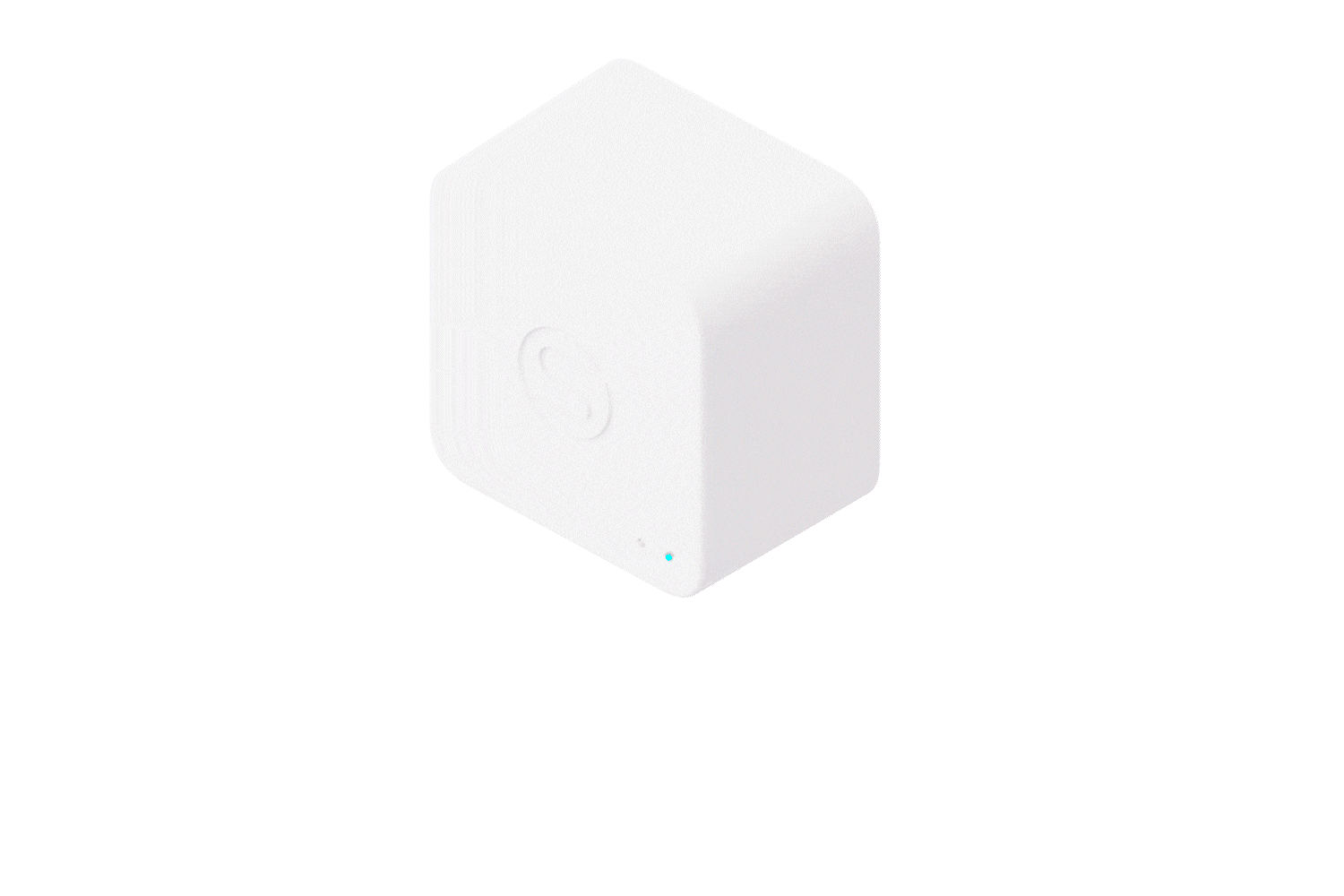

Product — Macro Sensor

Wide-Area Occupancy Intelligence

Macro sensors cover thousands of square feet per device. Get live occupancy, traffic, and dwell time data in minutes. No cameras. No personal data. Just the insights you need to make every space work smarter.
Designed for Big Spaces

Bring Clarity to Your Biggest Spaces

One Macro sensor covers 2,000–3,000 sq ft, making it the most efficient way to get occupancy intelligence across sprawling open environments — without deploying dozens of devices.

Workspaces

Track team use of shared spaces and hot desks — no privacy trade-offs. Know which zones fill up first and which go untouched all day.

Lobbies & Common Areas

See foot traffic and peak times in busy spots at a glance. Optimize staffing, signage, and layout for the moments that matter.

Libraries & Dining Halls

Find out how long people stay and when spaces fill up. Right-size hours of operation, staffing, and services around real demand.

Floors & Neighborhoods

Spot building-wide trends with just a few sensors per floor. Identify which neighborhoods to consolidate, expand, or repurpose.
Passive. Private. Precise.

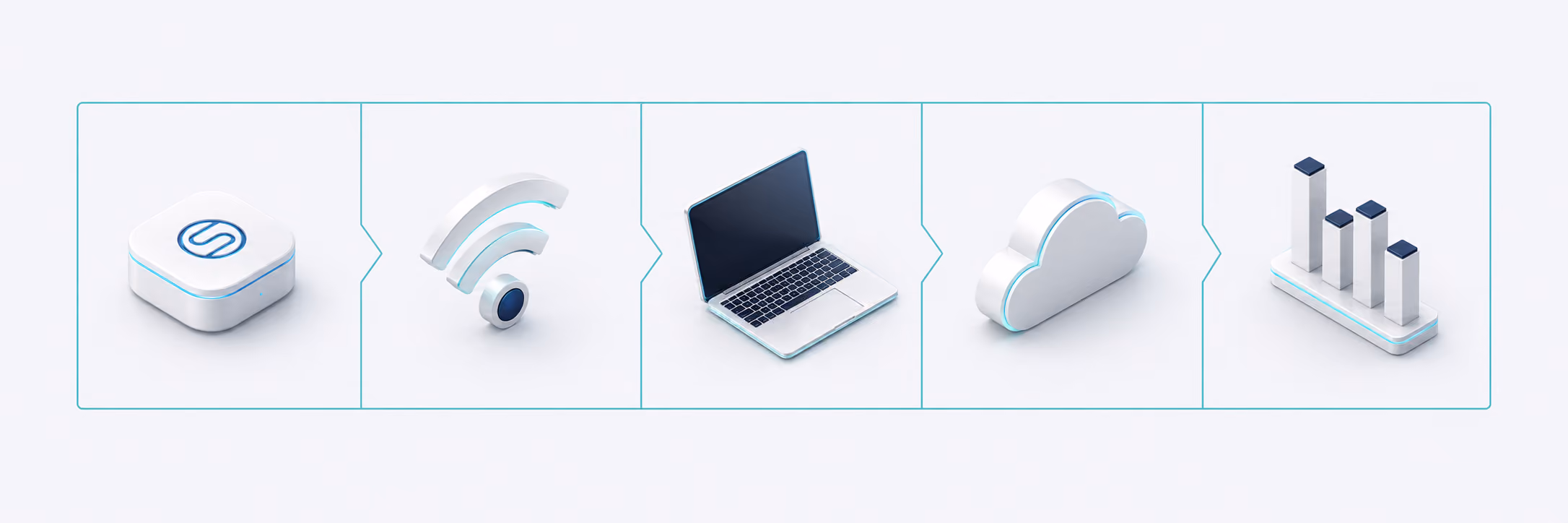

How Macro Works

Macro measures occupancy in big areas using passive scanning — no cameras, no device connections, no personal data ever leaves the sensor.

Passive Scanning

Detects anonymous BLE and Wi-Fi signals emitted naturally by nearby devices — no connections made.

Cloud ML Analysis

Occuspace's machine learning engine converts signal patterns into accurate people counts, traffic flows, and dwell times.

Real-Time Metrics

Live occupancy, traffic, and dwell time data — updated every minute — surface in the Occuspace portal and your existing tools.

Continuous Insight

Historical trends, peak analysis, and utilization reporting help you make smarter decisions over time, not just today.
Built for Wide Coverage

Why Teams Choose Macro

Three reasons facilities teams, CRE directors, and campus planners choose Macro to cover the spaces that matter most.

Wide-Area Coverage

One Macro sensor blankets thousands of square feet — open floors, lobbies, dining halls, and libraries — so you cover big spaces with far fewer devices.

Minutes to Deploy

Plug in and go. Managed cellular means no wiring and no IT tickets, with live occupancy data in minutes and a full building live in a day or two.

Privacy by Design

No cameras, and no personal data ever leaves the sensor. Anonymous signal detection clears enterprise and government IT review with ease.
Book a Free Demo
Technical Details

Macro at a Glance

Sensing Technology
Passive BLE + Wi-Fi (2.4 GHz & 5 GHz)
Coverage Area
2,000–3,000 sq ft per sensor
Data Outputs
Occupancy count, traffic flow, dwell time, availability
Update Frequency
Minute-by-minute, real-time
Connectivity
Managed cellular (included), Wi-Fi, or Ethernet
Power
Standard outlet or PoE (802.3af)
Form Factor
3 in × 3 in × 2 in
Operating Temperature
−20°C to 65°C
Privacy
No cameras, no PII, no device connections. MAC addresses hashed on-device.
Certifications
FCC, CE (details on request)
Technical Details

Macro at a Glance

Sensing Technology
Passive BLE + Wi-Fi (2.4 GHz & 5 GHz)
Coverage Area
2,000–3,000 sq ft per sensor
Data Outputs
Occupancy count, traffic flow, dwell time, availability
Update Frequency
Minute-by-minute, real-time
Connectivity
Managed cellular (included), Wi-Fi, or Ethernet
Power
Standard outlet or PoE (802.3af)
Form Factor
3 in × 3 in × 2 in
Operating Temperature
−20°C to 65°C
Privacy
No cameras, no PII, no device connections. MAC addresses hashed on-device.
Certifications
FCC, CE (details on request)
Flexible Sensing Options
Choose the Right Level of Detail
Macro, Micro, and WAP Integration work together or independently — giving you the precise coverage strategy your space requires.

Feature

Macro Sensor

Micro Sensor

WAP Integration

Best for
Open areas, floors, lobbies,
large zones
Enclosed spaces: offices, meeting rooms, desks
Building-wide utilization via existing infrastructure
Coverage per unit
2,000–3,000 sq ft
Single room / desk cluster
Entire access point coverage zone
Etiam sodales ac felis id interdum
Passive BLE + Wi-Fi
mmWave radar (presence detection)
Existing Wi-Fi AP data
Etiam sodales ac felis id interdum
✓ Yes (Macro sensor)
✓ Yes (Micro sensor)
✗ No (uses existing APs)
Etiam sodales ac felis id interdum
Zone-level count
Seat/room-level presence
Zone-level estimate
Etiam sodales ac felis id interdum
Etiam sodales ac felis id interdum
Macro + Micro together provide full occupancy intelligence — from building-wide trends down to individual desk presence.
From Macro to Metrics

Turn Big-Space Data Into Decisions

AI-Powered Accuracy

Our ML models are trained on millions of occupancy events across thousands of real-world spaces, delivering 95%+ accuracy even in complex environments.

Real-Time Data

Minute-by-minute occupancy updates mean your dashboards, signage, and integrations always reflect what's happening right now — not an hour ago.

Privacy by Design

No personal data is ever collected, transmitted, or stored. Privacy-first architecture means no compliance headaches, no consent workflows, no audits.

Easy Rollout

No network configuration, no IT tickets, no contractors. Macro is self-contained and self-connecting. Most teams are live within a single day.
Occuspace Data API & Streams

Push Macro Data Into Your Existing Tools

Macro data flows into the Occuspace platform — and from there into whatever your team already uses. Live access to occupancy, traffic, and dwell data via our REST API and real-time data streams.
Right-size real estate — connect to portfolio management tools
Automate HVAC and lighting based on live occupancy
Drive digital signage and wayfinding with live availability
Deploy staff and services to match peak traffic patterns
Generate ROI reports and utilization exports automatically
Explore the API
In Their Own Words

Trusted by 100+ Organizations

" Near-instant deployment — we rolled out Macro coverage across 1MM sq ft of office space in a single day. The data was live before our facilities team had packed up their bags. "
Derek Jones
Principal, San Diego Campus
Before You Deploy

Common Questions

Does Macro collect personal data?

No. Macro passively detects the presence of BLE and Wi-Fi signals, but MAC addresses are immediately hashed on-device before any data is transmitted. No personally identifiable information is ever collected, stored, or shared. No one can be identified or tracked.

Does Macro connect to people's devices?

No. Macro is a passive listener only — it never initiates connections, pairs with devices, or sends anything to the devices it detects. Devices in the space are entirely unaware of the sensor.

How quickly can we get live data after installing Macro?

Most customers see live occupancy data within minutes of plugging in a sensor. A full building deployment typically takes one to two days. There's no network configuration, no IT dependency, and no contractor required.

What network options does Macro support?

Macro includes managed cellular connectivity at no additional charge — no Wi-Fi configuration needed. It also supports Wi-Fi and Ethernet for environments where cellular is not preferred. You choose what works best for your facility.

What kinds of spaces is Macro best suited for?

Macro excels in large, open environments: open-plan offices, lobbies, dining halls, libraries, whole floors, and campus common areas. For enclosed spaces like individual meeting rooms or private offices, Micro sensors provide room-level precision.

Can Macro work alongside Micro sensors?

Yes — and this is a common configuration. Macro covers open floors and shared zones while Micro sensors provide detailed room-level and desk-level data. Together they give you complete occupancy intelligence across an entire building or campus.
